MPCB Switch in Ahmedabad

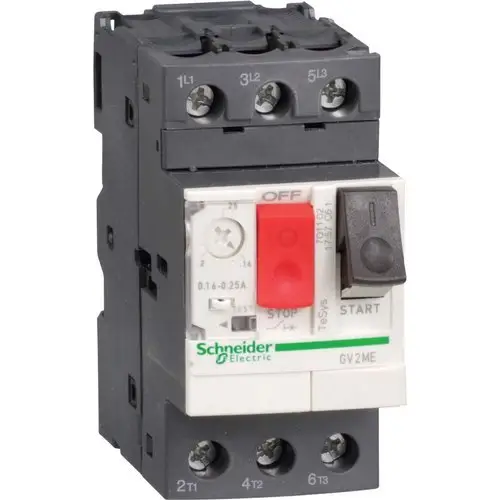

An MPCB (Motor Protection Circuit Breaker) switch is an electrical device that is designed to protect electric motors from overloading and short circuits. It functions like a circuit breaker but is specifically designed for motors. It trips or disconnects the power supply to the motor when it detects an abnormal condition, such as an overload or short circuit, preventing damage to the motor.

An MPCB switch has a thermal overload relay and a magnetic trip unit that work together to detect overloads and short circuits. The thermal overload relay monitors the current flow to the motor and if it exceeds a predetermined value for a specified amount of time, it activates the magnetic trip unit. The magnetic trip unit, in turn, trips the MPCB switch and disconnects the power supply to the motor.

Selecting the appropriate MPCB switch for a motor application requires considering factors such as the motor's rated current, voltage, and power factor, as well as the type of motor and the environment in which it will operate. The MPCB's trip characteristics, such as the adjustable overload and short circuit settings, should be matched with the motor's operating parameters. Consulting the motor's manufacturer or a qualified electrician can help in determining the right MPCB switch for the specific motor application, ensuring proper motor protection and reliable operation.
